Negative linear voltage regulator, fixed output voltage of -5V with 100mA maximum output current. Features a 75mV dropout voltage and 50dB power supply rejection ratio. Operates within a 0°C to 70°C temperature range, with a maximum input voltage of -35V. Packaged in an 8-SOIC surface mount configuration.
PackageSOIC
Voltage-5V
Current Rating100mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM79L05ACM/NOPB technical specifications.
General
| Accuracy | 5% |
| Package/Case | SOIC |
| Current Rating | 100mA |
| Dropout Voltage | 75mV |
| Height | 1.45mm |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Max Input Voltage | -35V |
| Min Input Voltage | -7.3V |
| Max Operating Temperature | 70°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 100mA |
| Max Output Voltage | -5V |
| Max Supply Voltage | -20V |
| Min Supply Voltage | -7.5V |
| Mount | Surface Mount |
| Nominal Output Voltage | -5V |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Negative |
| Output Current | 100mA |
| Output Type | Fixed |
| Output Voltage | -5V |
| Packaging | Rail/Tube |
| Polarity | Negative |
| Power Supply Rejection Ratio (PSRR) | 50dB |
| Quiescent Current | 6mA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Tolerance | 5% |
| Voltage | -5V |
| Width | 3.9mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM79L05ACM/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM79L05ACM/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

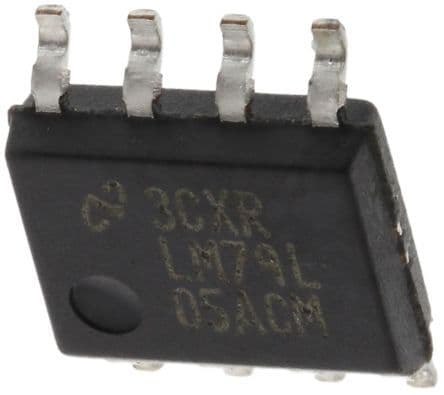

Product Images
