Serial interface system hardware monitor with remote diode temperature sensing, featuring an 8-bit resolution and SMBus interface. This surface mount TSSOP package component operates from a 2.8V to 3.8V DC supply voltage, with a typical operating supply voltage of 3.3V and a supply current of 700uA. It offers digital, I2C output types and operates within a temperature range of -40°C to 125°C.
PackageTSSOP
Current700uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM87CIMT/NOPB technical specifications.
General
| Package/Case | TSSOP |
| Height | 0.9mm |
| Interface | SMBus |
| Lead Free | Lead Free |
| Length | 7.8mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage (DC) | 3.8V |
| Min Supply Voltage (DC) | 2.8V |
| Max Supply Voltage | 3.8V |
| Min Supply Voltage | 2.8V |
| Mount | Surface Mount |
| Number of Bits | 8 |
| Operating Supply Current | 700uA |
| Operating Supply Voltage | 3.3V |
| Output Type | Digital, I2C |
| Package Quantity | 61 |
| Packaging | Rail/Tube |
| Quiescent Current | 2mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 8b |
| RoHS Compliant | Yes |
| Supply Current | 700uA |
| Width | 4.4mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM87CIMT/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM87CIMT/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

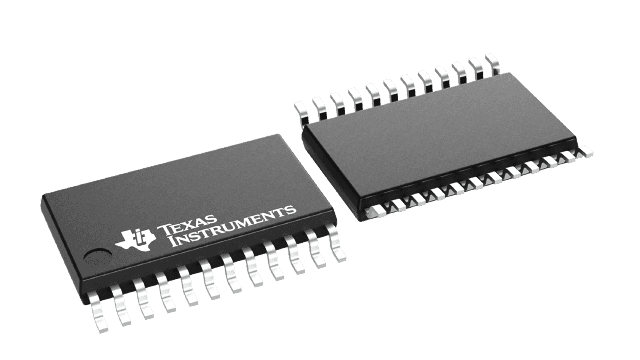

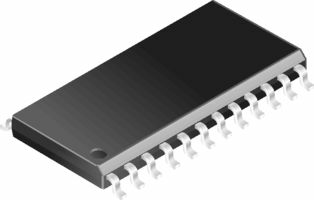

Product Images
