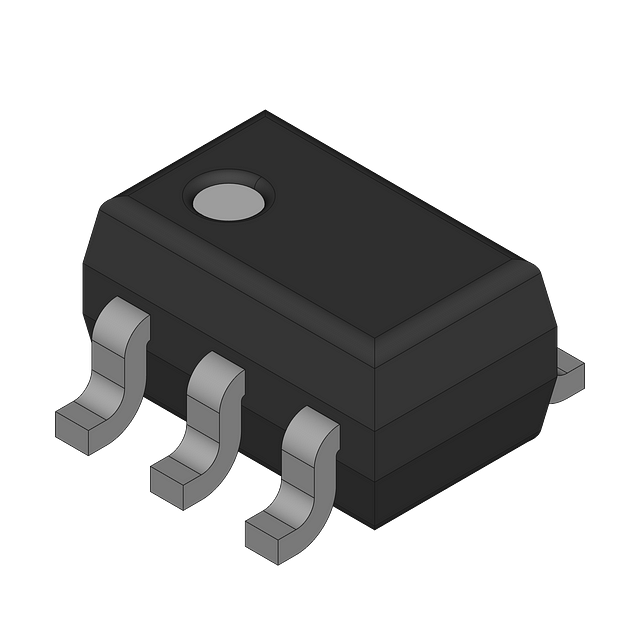

Analog temperature sensor with ±1.5°C accuracy, operating from -50°C to 150°C. Features multiple gain analog output options and a supply voltage range of 1.5V to 5.5V. This surface mount component is housed in a 5-SC70 package, offering a 1-channel analog voltage output. Quiescent current is 12µA, with a supply current of 9µA.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments LM94021BIMG/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SC |
| Interface | Analog |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -50°C |
| Max Supply Voltage (DC) | 5.5V |
| Min Supply Voltage (DC) | 1.5V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.5V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Output Current | 7mA |
| Output Type | Analog, Analog Voltage |
| Output Voltage | 6.5V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Quiescent Current | 12uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Supply Current | 9uA |
| Termination | SMD/SMT |
| Thickness | 900um |
| RoHS | Compliant |
