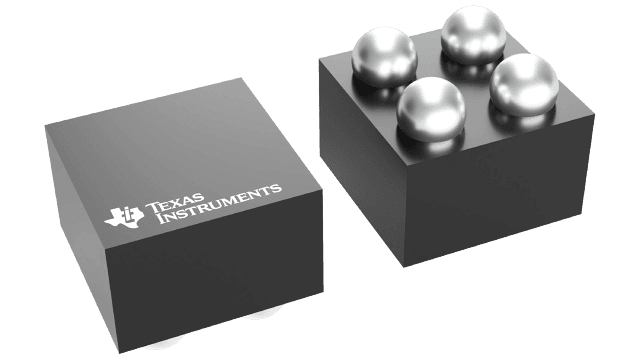

Analog temperature sensor with ±1.5°C accuracy, operating from -50°C to 150°C. Features multiple gain options and a Class-AB analog output. This surface-mount device utilizes a WCSP 4-DSBGA package with dimensions of 0.82mm (L) x 0.815mm (W) x 0.395mm (H). Supply voltage ranges from 1.5V to 5.5V, with a typical supply current of 5.4µA. RoHS compliant and lead-free.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments LM94023BITME/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | BGA |
| Height | 0.395mm |
| Interface | Analog |
| Lead Free | Lead Free |
| Length | 0.82mm |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -50°C |
| Max Supply Voltage (DC) | 5.5V |
| Min Supply Voltage (DC) | 1.5V |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 1.5V |
| Mount | Surface Mount |
| Operating Supply Current | 5.4uA |
| Output Current | 7mA |
| Output Type | Analog, Analog Voltage, PUSH-PULL |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Quiescent Current | 8.1uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 5.4uA |
| Termination | SMD/SMT |
| Width | 0.815mm |
| RoHS | Compliant |
