Digital temperature sensor with I2C/SMBus interface, offering ±2°C accuracy across a -40°C to 140°C operating range. Features 13-bit resolution for precise measurements and a 10b output. Operates from a 3V to 3.6V supply with a typical 570µA quiescent current. Surface-mount package with dimensions of 4mm x 4mm x 0.8mm.
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM95214CISD/NOPB technical specifications.
General
| Height | 0.8mm |
| Interface | I2C, SMBus |
| Lead Free | Lead Free |
| Length | 4mm |
| Max Operating Temperature | 140°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage (DC) | 3.6V |
| Min Supply Voltage (DC) | 3V |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Bits | 13 |
| Operating Supply Current | 570uA |
| Operating Supply Voltage | 3.3V |
| Output Current | 10uA |
| Output Type | Digital |
| Output Voltage | 600mV |
| Packaging | Tape and Reel |
| Quiescent Current | 570uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 10b |
| RoHS Compliant | Yes |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM95214CISD/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM95214CISD/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

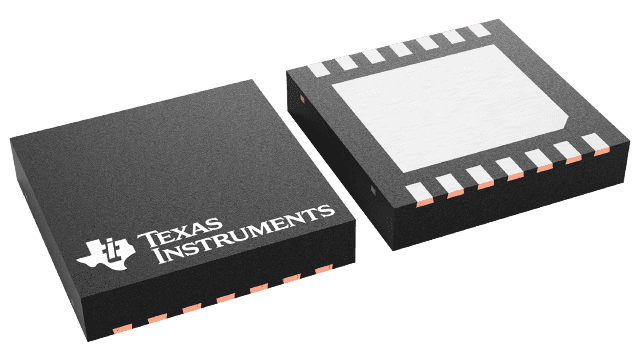

Product Images
