Quad remote and local temperature sensor with digital output, featuring a 13-bit resolution and ±2°C accuracy. Operates from a 3V to 3.6V supply, with a typical 3.3V operating voltage. Offers I2C, SMBus, and 2-Wire serial interfaces. Designed for surface mount applications in a 14-WSON package, with an operating temperature range of -40°C to 140°C.
Current570uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM95234CISD/NOPB technical specifications.
General
| Height | 800um |
| Interface | I2C, SMBus, 2-Wire, Serial |
| Lead Free | Lead Free |
| Length | 4mm |
| Max Operating Temperature | 140°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage (DC) | 3.6V |
| Min Supply Voltage (DC) | 3V |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Bits | 13 |
| Number of Channels | 4 |
| Operating Supply Voltage | 3.3V |
| Output Current | 10uA |
| Output Type | Digital |
| Output Voltage | 600mV |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Quiescent Current | 570uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Resolution | 10b |
| RoHS Compliant | Yes |
| Series | TruTherm™ |
| Supply Current | 570uA |
| Termination | SMD/SMT |
| Thickness | 800um |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LM95234CISD/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM95234CISD/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

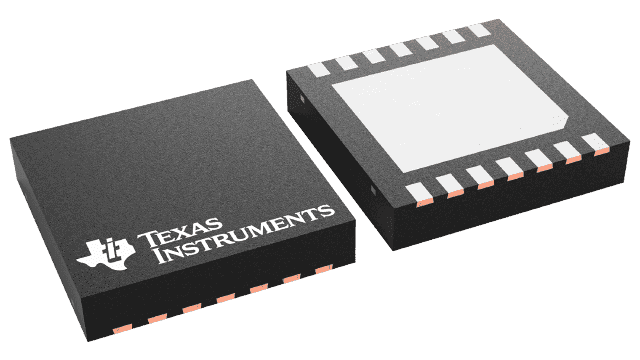

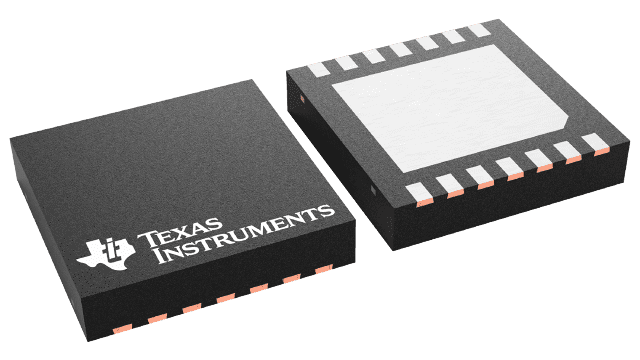

Product Images
