Digital temperature sensor with ±0.75°C accuracy, featuring SMBus and I2C interfaces. This surface mount component offers 12-bit resolution and operates from a 3V to 3.6V supply, with a typical operating supply voltage of 3.3V. Designed for local and remote temperature monitoring, it supports a temperature range of -40°C to 125°C. The component is provided in a MSOP package, measuring 3.1mm in length and width, and 0.95mm in height.
PackageMSOP
Current350uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LM95245CIMM/NOPB technical specifications.
General
Package/Case
MSOP
Height
0.95mm
Interface
I2C, SMBus
Lead Free
Lead Free
Length
3.1mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.6V
Min Supply Voltage
3V
Mount
Surface Mount
Number of Bits
13
Operating Supply Current
250uA
Operating Supply Voltage
3.3V
Output Type
Digital
Package Quantity
1000
Packaging
Tape and Reel
Quiescent Current
250uA
Radiation Hardening
No
Reach SVHC Compliant
No
Resolution
12b
RoHS Compliant
Yes
Series
TruTherm™
Supply Current
350uA
Width
3.1mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LM95245CIMM/NOPB Datasheet
Download the complete datasheet for Texas Instruments LM95245CIMM/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

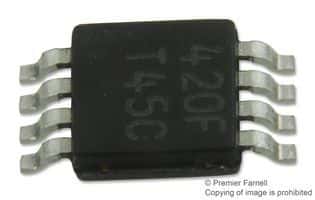

Product Images
