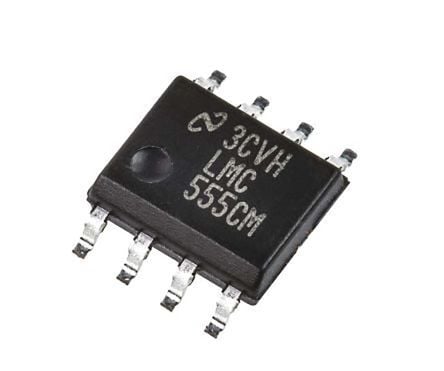

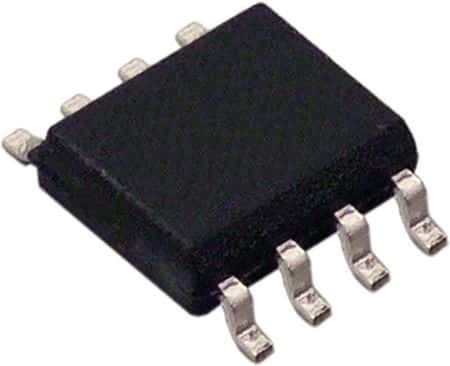

Single timer IC, surface mountable in an 8-pin SOIC package. Features a maximum operating frequency of 3MHz and a supply voltage range of 2V to 15V. Offers a low-level output current of 50mA and a high-level output current of -10mA, with a combined output current of 100mA. Operates across a temperature range of -40°C to 125°C, with a typical operating supply current of 150µA. RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments LMC555CM/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | SOIC |
| Frequency | 3MHz |
| Height | 1.45mm |
| High Level Output Current | -10mA |
| Length | 4.9mm |
| Low Level Output Current | 50mA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 15V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Timers/Counters | 1 |
| Operating Supply Current | 150uA |
| Output Current | 100mA |
| Packaging | Rail/Tube |
| Power Dissipation | 740mW |
| Propagation Delay | 100ns |
| Quiescent Current | 50uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Thickness | 1.58mm |
| Turn-On Delay Time | 100ns |
| Width | 3.9mm |
| RoHS | Compliant |
