Precision CMOS dual operational amplifier featuring rail-to-rail input and output. Achieves ultra-low 0.02pA input bias current and 110µV input offset voltage. Offers a 1.5MHz gain bandwidth product and 1.3V/µs slew rate. Operates from 3V to 15.5V supply voltage with a maximum supply current of 1.4mA. Packaged in an 8-VSSOP surface mount configuration, suitable for -40°C to 85°C operation.
PackageMSOP
Current1.3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LMC6482IMM/NOPB technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 1.5MHz |
| Package/Case | MSOP |
| Common Mode Rejection Ratio | 65dB |
| Gain Bandwidth Product | 1.5MHz |
| Height | 0.86mm |
| Input Bias Current | 0.02pA |
| Input Offset Voltage (Vos) | 110uV |
| Lead Free | Lead Free |
| Length | 3mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 1.4mA |
| Max Supply Voltage | 15.5V |
| Min Supply Voltage | 3V |
| Mount | Surface Mount |
| Number of Amplifiers | 2 |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Number of Elements | 2 |
| Output Current | 30mA |
| Output Current per Channel | 30mA |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 65dB |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Slew Rate | 1.3V/µs |
| Supply Current | 1.3mA |
| Technology | CMOS |
| Unity Gain Bandwidth Product | 1.5MHz |
| Voltage Gain | 116.47dB |
| Width | 3mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LMC6482IMM/NOPB Datasheet
Download the complete datasheet for Texas Instruments LMC6482IMM/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

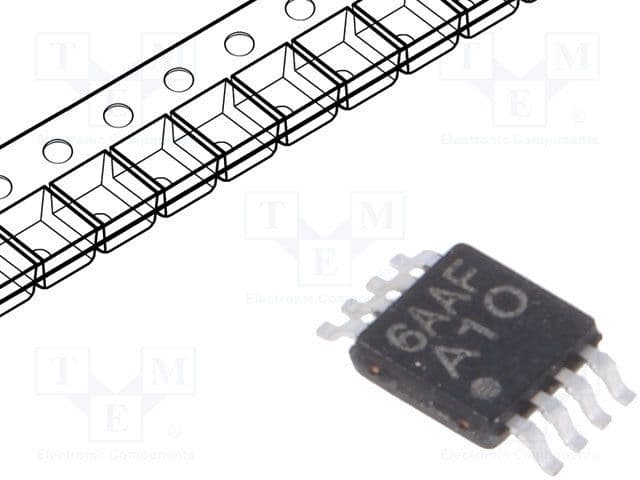

Product Images
