Low power, low voltage comparator featuring a single push-pull output, designed for surface mount applications in a 5-SOT-23 package. Operates from 2V to 8V supply voltage with a typical quiescent current of 1µA. Offers a high voltage gain of 140dB, 80dB common mode rejection ratio, and 90dB power supply rejection ratio. Input bias current is a low 5pA, with an input offset voltage of 6mV. Suitable for operation across a -40°C to 85°C temperature range.
PackageSOT-23
Current1uA
Current Rating30A
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LMC7215IM5/NOPB technical specifications.
General
| Package/Case | SOT-23 |
| Common Mode Rejection Ratio | 80dB |
| Current Rating | 30A |
| Height | 1.02mm |
| Input Bias Current | 5pA |
| Input Offset Voltage (Vos) | 6mV |
| Lead Free | Lead Free |
| Length | 2.92mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 1uA |
| Max Supply Voltage | 8V |
| Min Supply Voltage | 2V |
| Mount | Surface Mount |
| Number of Elements | 1 |
| Operating Supply Voltage | 3V |
| Output Compatibility | CMOS |
| Output Current | 30mA |
| Output Type | PUSH-PULL |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 90dB |
| Propagation Delay | 24us |
| Quiescent Current | 1uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Response Time | 25us |
| Supply Current | 1uA |
| Technology | CMOS |
| Termination | SMD/SMT |
| Type | General Purpose |
| Voltage Gain | 140dB |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LMC7215IM5/NOPB Datasheet
Download the complete datasheet for Texas Instruments LMC7215IM5/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

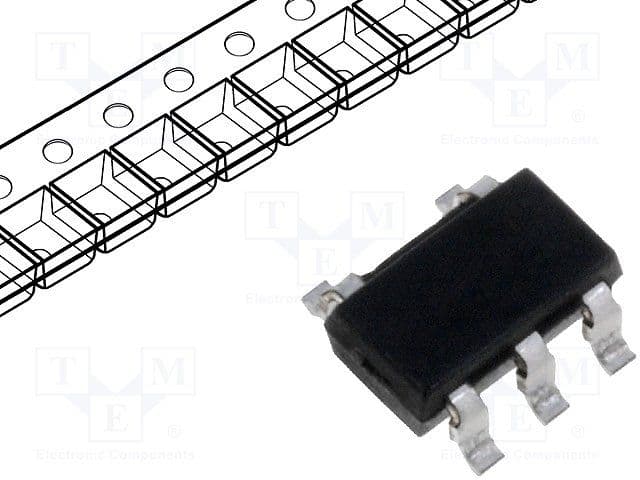

Product Images
