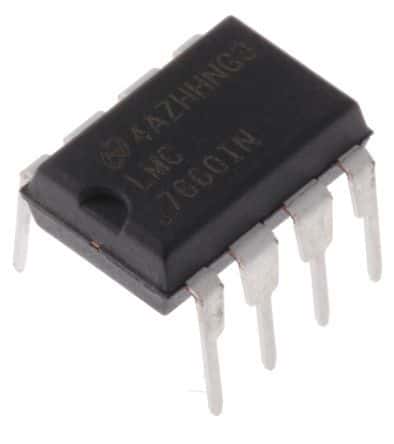

Charge Pump IC, featuring an adjustable negative output voltage ranging from -1.5V to -10V with a maximum output current of 50mA. This component operates with an input voltage range of 1.5V to 10V and supports a maximum supply voltage of 10V. It is housed in an 8-pin PDIP package for through-hole mounting, with dimensions of 9.27mm length, 6.35mm width, and 3.3mm height. The device offers a quiescent current of 120µA and a switching frequency of 10kHz, operating within a temperature range of -40°C to 85°C. This RoHS compliant component is designed for power management applications.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments LMC7660IN/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | DIP |
| Frequency | 10kHz |
| Height | 3.3mm |
| Lead Free | Lead Free |
| Length | 9.27mm |
| Max Input Voltage | 10V |
| Min Input Voltage | 1.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Voltage | -1.5V |
| Min Output Voltage | -10V |
| Max Supply Voltage | 10V |
| Min Supply Voltage | 1.5V |
| Mount | Through Hole |
| Number of Outputs | 1 |
| Output Configuration | Negative |
| Output Power | 1.4W |
| Output Type | Fixed, Adjustable |
| Output Voltage | -10V |
| Packaging | Rail/Tube |
| Quiescent Current | 120uA |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Synchronous Rectifier | No |
| Termination | Through Hole |
| Topology | Charge Pump |
| Width | 6.35mm |
| RoHS | Compliant |
Download the complete datasheet for Texas Instruments LMC7660IN/NOPB to view detailed technical specifications.
