High-performance H-bridge driver IC featuring 3A continuous output current and 55V maximum output voltage. This component offers two output channels and operates from a 12V to 55V supply voltage. Designed for through-hole mounting in a TO-220-11 package, it supports parallel interface and has a wide operating temperature range from -40°C to 125°C. Power dissipation is rated at 3W.
PackageTO-220-11
MountingThrough Hole
Power3W
Quick Jump:
Technical Specifications
Texas Instruments LMD18200T technical specifications.
General
Package/Case
TO-220-11
Interface
Parallel
Lead Free
Contains Lead
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Output Current
3A
Max Output Voltage
55V
Max Supply Voltage
55V
Min Supply Voltage
12V
Mount
Through Hole
Number of Channels
2
Number of Outputs
2
Operating Supply Current
13mA
Output Current
3A
Output Voltage
55V
Packaging
Rail/Tube
Power Dissipation
3W
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
No
Compliance
RoHS
Not CompliantNo
Datasheet
Texas Instruments LMD18200T Datasheet
Download the complete datasheet for Texas Instruments LMD18200T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

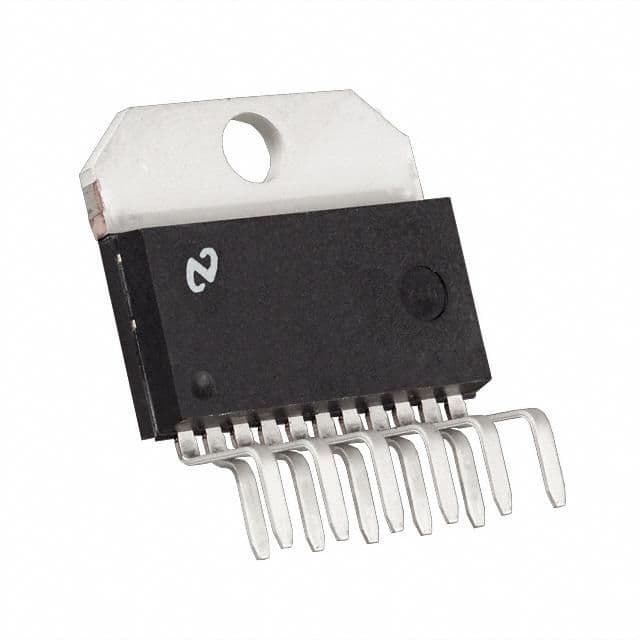

Product Images
