The LMD18245T is a dual 55V 3A motor driver IC from Texas Instruments. It features a TO-220-15 package and is mounted through a hole. The device operates over a supply voltage range of 12V to 55V and has a maximum supply current of 8mA. The LMD18245T is not RoHS compliant and does not meet Reach SVHC requirements.
PackageTO-220-15
Current8mA
MountingThrough Hole
Quick Jump:
Technical Specifications
Texas Instruments LMD18245T technical specifications.
General
| Package/Case | TO-220-15 |
| Interface | Parallel |
| Lead Free | Contains Lead |
| Max Supply Voltage | 55V |
| Min Supply Voltage | 12V |
| Mount | Through Hole |
| Number of Channels | 2 |
| Number of Outputs | 2 |
| Output Current | 3A |
| Output Voltage | 55V |
| Package Quantity | 20 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | No |
| Supply Current | 8mA |
| DC Rated Voltage | 55V |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments LMD18245T Datasheet
Download the complete datasheet for Texas Instruments LMD18245T to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

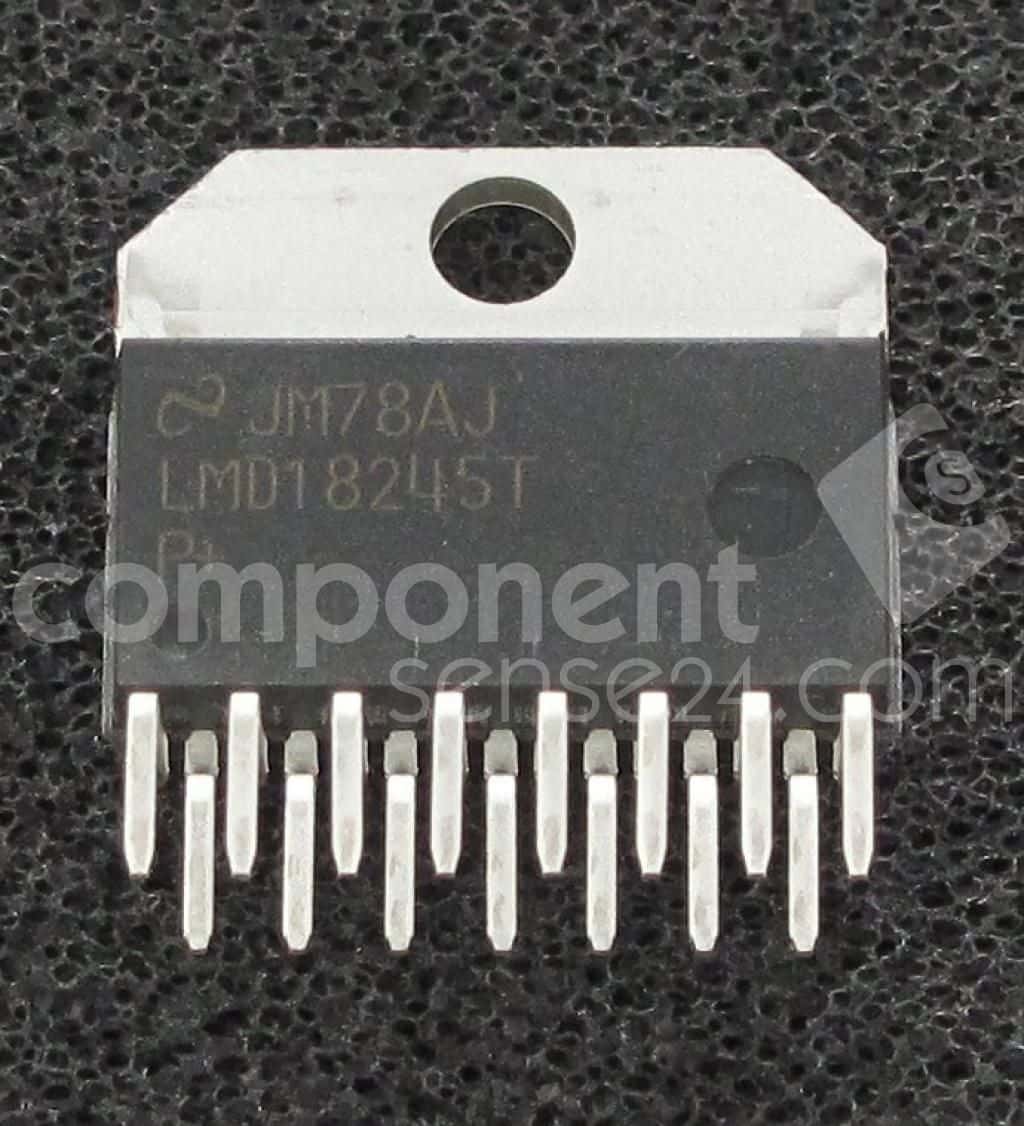

Product Images
