High-performance audio buffer IC featuring a 2000V/µs slew rate and 500mW max output power. Designed for high fidelity audio applications, this single-channel amplifier operates with dual supply voltages from 2.25V to 18V. The TO-263 package facilitates surface mounting, with dimensions of 10.16mm length, 8.64mm width, and 4.57mm height. It offers a 32Ω load impedance capability and operates within a temperature range of -40°C to 85°C.
PackageTO-263
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LME49600TS/NOPB technical specifications.
General
| Package/Case | TO-263 |
| Dual Supply Voltage | 9V |
| Height | 4.57mm |
| Input Bias Current | 5uA |
| Input Offset Voltage (Vos) | 60mV |
| Lead Free | Contains Lead |
| Length | 10.16mm |
| Load Impedance | 32R |
| Max Dual Supply Voltage | 18V |
| Min Dual Supply Voltage | 2.25V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Power | 500mW |
| Max Supply Voltage | 18V |
| Min Supply Voltage | 2.25V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Packaging | Rail/Tube |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 2000V/µs |
| Technology | BIPOLAR |
| Termination | SMD/SMT |
| Voltage Gain | 0.09dB |
| Width | 8.64mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LME49600TS/NOPB Datasheet
Download the complete datasheet for Texas Instruments LME49600TS/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

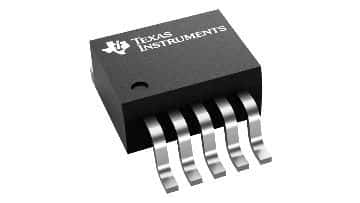

Product Images
