Adaptive cable equalizer for serial interfaces, operating at data rates up to 1485Mbps. This surface mount integrated circuit features a 16-pin SOIC package with dimensions of 10mm length, 3.988mm width, and 1.397mm height. It operates within a supply voltage range of 3.135V to 3.465V, with a typical supply current of 63mA. The component is RoHS compliant and designed for a temperature range of 0°C to 85°C.
PackageSOIC
Current63mA
MountingSurface Mount
Power208W
Quick Jump:
Technical Specifications
Texas Instruments LMH0034MA/NOPB technical specifications.
General
| Package/Case | SOIC |
| Data Rate | 1485Mbps |
| Height | 1.397mm |
| Interface | Serial |
| Lead Free | Lead Free |
| Length | 10mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | 0°C |
| Max Supply Current | 77mA |
| Max Supply Voltage | 3.465V |
| Min Supply Voltage | 3.135V |
| Mount | Surface Mount |
| Operating Supply Current | 63mA |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 48 |
| Packaging | Rail/Tube |
| Power Consumption | 208W |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 63mA |
| Termination | SMD/SMT |
| Weight | 0.023492oz |
| Width | 3.988mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LMH0034MA/NOPB Datasheet
Download the complete datasheet for Texas Instruments LMH0034MA/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

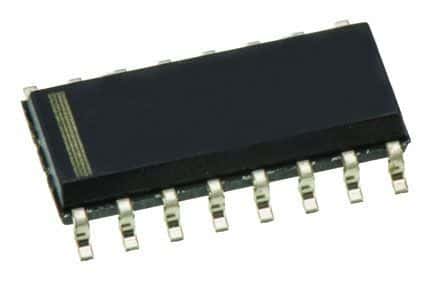

Product Images
