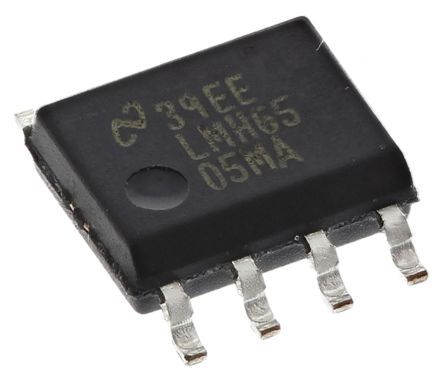

Linear-in-dB, variable gain amplifier with 150MHz -3dB bandwidth and 1500V/µs slew rate. Features 80dB voltage gain, 100MHz gain bandwidth product, and 2.6µA input bias current. Operates from a dual supply voltage range of 3.5V to 6V, with a maximum supply voltage of 12V and a maximum supply current of 16mA. Packaged in an 8-SOIC surface mount case, this RoHS compliant component is suitable for operation between -40°C and 85°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments LMH6505MA/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments LMH6505MA/NOPB technical specifications.
| -3db Bandwidth | 150MHz |
| Bandwidth | 150MHz |
| Package/Case | SOIC |
| Dual Supply Voltage | 5V |
| Gain Bandwidth Product | 100MHz |
| Height | 1.45mm |
| Input Bias Current | 2.6uA |
| Input Offset Voltage (Vos) | 55mV |
| Input Resistance | 7MR |
| Input Voltage Noise Density | 4.4nV/sqrt Hz |
| Lead Free | Lead Free |
| Length | 4.9mm |
| Max Dual Supply Voltage | 6V |
| Min Dual Supply Voltage | 3.5V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 16mA |
| Max Supply Voltage | 12V |
| Min Supply Voltage | 7V |
| Mount | Surface Mount |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Operating Supply Current | 11mA |
| Operating Supply Voltage | 9V |
| Output Current | 80mA |
| Output Current per Channel | 80mA |
| Package Quantity | 95 |
| Packaging | Rail/Tube |
| Power Supply Rejection Ratio (PSRR) | 65dB |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PowerWise® |
| Slew Rate | 1500V/µs |
| Supply Current | 16mA |
| Unity Gain Bandwidth Product | 100MHz |
| Voltage Gain | 80dB |
| Width | 3.9mm |
| RoHS | Compliant |
