High-performance, single-channel operational amplifier featuring a 600MHz -3dB bandwidth and digital controlled variable gain with 6.02dB steps. Offers 81dB Common Mode Rejection Ratio and 63dB Power Supply Rejection Ratio. Input characteristics include 1.12kΩ input resistance and 1.8nV/√Hz input voltage noise density. Operates from a 4V to 5.25V supply with a typical operating supply current of 107mA. Packaged in a 16-WQFN surface mount configuration, suitable for -40°C to 85°C operation.
Current124mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LMH6514SQ/NOPB technical specifications.
General
-3db Bandwidth
600MHz
Common Mode Rejection Ratio
81dB
Input Offset Voltage (Vos)
30mV
Input Resistance
1.12kR
Input Voltage Noise Density
1.8nV/sqrt Hz
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.25V
Min Supply Voltage
4V
Mount
Surface Mount
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
107mA
Output Current
20mA
Package Quantity
1000
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
63dB
Radiation Hardening
No
RoHS Compliant
Yes
Series
PowerWise®
Supply Current
124mA
Voltage Gain
30.3dB
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LMH6514SQ/NOPB Datasheet
Download the complete datasheet for Texas Instruments LMH6514SQ/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

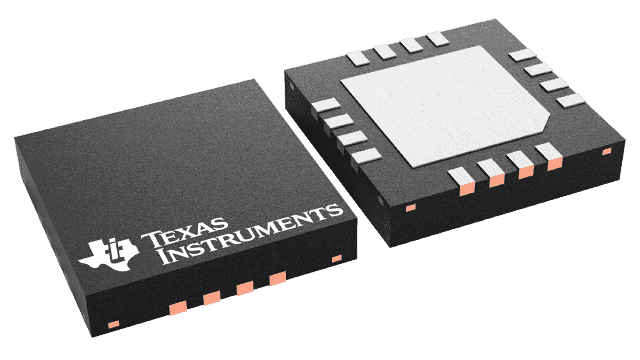

Product Images
