High-performance, single-channel operational amplifier featuring a 600MHz bandwidth and 32dB voltage gain. This digitally controlled variable gain amplifier offers 1dB step adjustments and a 1.8nV/sqrt Hz input voltage noise density. Designed for surface mount applications, it operates from a 4V to 5.25V supply, with a typical operating current of 107mA. Key specifications include an 85dB Common Mode Rejection Ratio and 83dB Power Supply Rejection Ratio, housed in a compact 4mm x 4mm x 0.8mm package.
Current124mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LMH6515SQ/NOPB technical specifications.
General
| -3db Bandwidth | 600MHz |
| Bandwidth | 600MHz |
| Common Mode Rejection Ratio | 85dB |
| Gain | 31dB |
| Height | 0.8mm |
| Input Offset Voltage (Vos) | 30mV |
| Input Resistance | 1.12kR |
| Input Voltage Noise Density | 1.8nV/sqrt Hz |
| Lead Free | Lead Free |
| Length | 4mm |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.25V |
| Min Supply Voltage | 4V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Operating Supply Current | 107mA |
| Operating Supply Voltage | 5V |
| Output Current | 20mA |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 83dB |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | PowerWise® |
| Supply Current | 124mA |
| Voltage Gain | 32dB |
| Width | 4mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LMH6515SQ/NOPB Datasheet
Download the complete datasheet for Texas Instruments LMH6515SQ/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

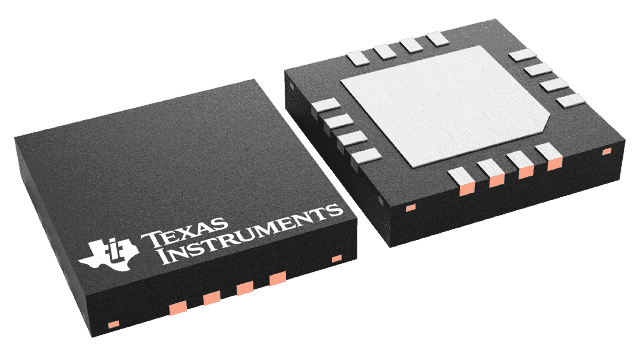

Product Images
