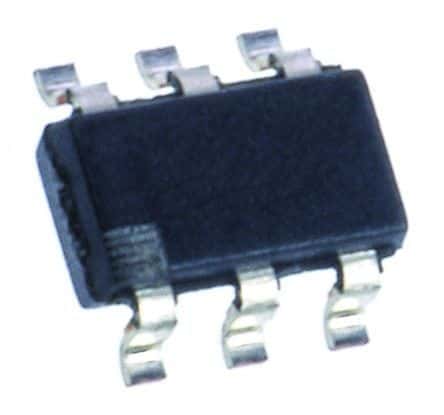

Single-channel, general-purpose audio amplifier with a 345MHz bandwidth and 365MHz -3dB bandwidth. Features a 460V/µs slew rate and 135MHz gain bandwidth product. Operates from a 2.7V to 11V supply range, with a dual supply voltage of 5V. Offers rail-to-rail output and a 100mA maximum output current. Packaged in a 6-pin TSOT surface-mount component.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments LMH6611MKE/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| -3db Bandwidth | 365MHz |
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 345MHz |
| Package/Case | TSOT |
| Common Mode Rejection Ratio | 81dB |
| Dual Supply Voltage | 5V |
| Gain Bandwidth Product | 135MHz |
| Height | 0.87mm |
| Input Bias Current | 6.5uA |
| Input Offset Voltage (Vos) | 74uV |
| Lead Free | Lead Free |
| Length | 2.97mm |
| Max Dual Supply Voltage | 5.5V |
| Min Dual Supply Voltage | 1.35V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 100mA |
| Max Supply Voltage | 11V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Operating Supply Current | 3.3mA |
| Output Current | 100mA |
| Output Current per Channel | 120mA |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 81dB |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | PowerWise® |
| Settling Time | 67ns |
| Slew Rate | 460V/µs |
| Supply Current | 3.2mA |
| Unity Gain Bandwidth Product | 135MHz |
| Voltage Gain | 103dB |
| Width | 1.65mm |
| RoHS | Compliant |
Download the complete datasheet for Texas Instruments LMH6611MKE/NOPB to view detailed technical specifications.
