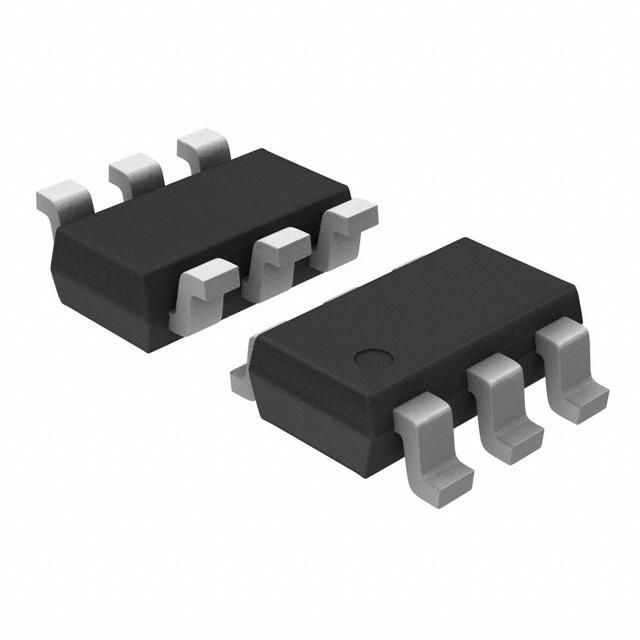

High-speed, single-channel general-purpose comparator featuring a 3.63ns response time and 7ns propagation delay. Operates with a minimum dual supply voltage of 1.35V and a maximum of 12V, with a typical quiescent current of 6.8mA. Offers a 70dB Common Mode Rejection Ratio and 74dB Power Supply Rejection Ratio. Packaged in a TSOT-6 surface mount configuration, this component is designed for applications requiring precise and rapid signal comparison.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments LMH7220MK datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | TSOT |
| Common Mode Rejection Ratio | 70dB |
| Input Bias Current | 500nA |
| Input Offset Voltage (Vos) | 5V |
| Lead Free | Contains Lead |
| Max Dual Supply Voltage | 6V |
| Min Dual Supply Voltage | 1.35V |
| Max Input Current | 500nA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 9mA |
| Max Supply Voltage | 12V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Elements | 1 |
| Output Current | 5mA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 74dB |
| Propagation Delay | 7ns |
| Quiescent Current | 6.8mA |
| Response Time | 7ns |
| RoHS Compliant | No |
| Supply Current | 9mA |
| Technology | BIPOLAR |
| Type | General Purpose |
| Voltage Gain | 59dB |
| RoHS | Not Compliant |
