Texas Instruments
LMK00301SQE/NOPB
3-GHz, 10-Output Differential Fanout Buffer / Level Translator 48-WQFN -40 to 85
Frequency3.1GHz
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LMK00301SQE/NOPB technical specifications.
General
| Height | 800um |
| Input | Crystal |
| Lead Free | Lead Free |
| Length | 7mm |
| Max Frequency | 3.1GHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.45V |
| Min Supply Voltage | 3.15V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Outputs | 11 |
| Operating Supply Current | 13.5mA |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Propagation Delay | 1550ps |
| RoHS Compliant | Yes |
| Thickness | 750um |
| Width | 7mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LMK00301SQE/NOPB Datasheet
Download the complete datasheet for Texas Instruments LMK00301SQE/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

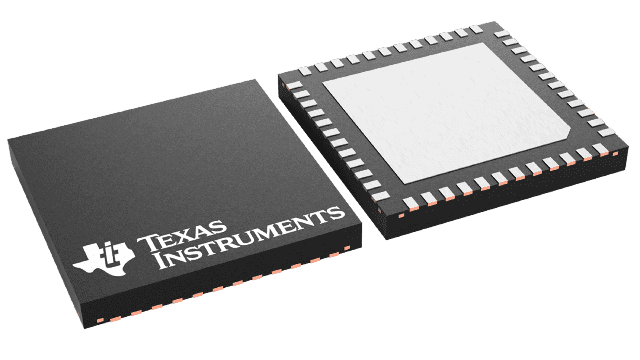

Product Images
