Frequency400MHz
Current8.5mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LMK00338RTAR technical specifications.
General
| Frequency | 400MHz |
| Input | Crystal |
| Lead Free | Lead Free |
| Max Duty Cycle | 55% |
| Max Frequency | 400MHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.45V |
| Min Supply Voltage | 3.15V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Outputs | 8 |
| Operating Supply Current | 13.5mA |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| PLL | No |
| Propagation Delay | 2700ps |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Supply Current | 8.5mA |
| Weight | 0.001929oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LMK00338RTAR Datasheet
Download the complete datasheet for Texas Instruments LMK00338RTAR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

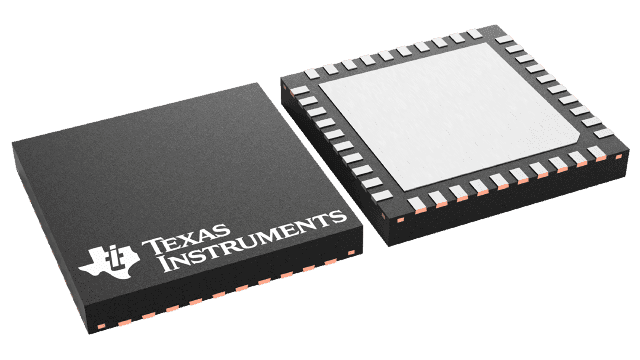

Product Images
