Precision operational amplifier featuring an exceptionally low 3 femtoampere input bias current. This single-channel, general-purpose amplifier offers a 17MHz bandwidth and a 120dB voltage gain. Designed for surface mounting in an 8-SOIC package, it operates from a 2V to 5.5V supply range with a typical 1.3mA supply current. Key performance metrics include a 150µV input offset voltage and 84dB CMRR/PSRR, with an operating temperature range of -40°C to 125°C.
PackageSOIC
Current1.3mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LMP7721MA/NOPB technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
17MHz
Package/Case
SOIC
Common Mode Rejection Ratio
84dB
Gain Bandwidth Product
17MHz
Height
1.45mm
Input Bias Current
0.003pA
Input Offset Voltage (Vos)
150uV
Lead Free
Lead Free
Length
4.9mm
Max Operating Temperature
125°C
Min Operating Temperature
-40°C
Max Supply Voltage
5.5V
Min Supply Voltage
2V
Mount
Surface Mount
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Operating Supply Current
1.3mA
Output Current
60mA
Output Current per Channel
60mA
Package Quantity
95
Packaging
Rail/Tube
Power Supply Rejection Ratio (PSRR)
84dB
Radiation Hardening
No
Reach SVHC Compliant
No
RoHS Compliant
Yes
Series
LMP®, PowerWise®
Slew Rate
12.76V/µs
Supply Current
1.3mA
Unity Gain Bandwidth Product
17MHz
Voltage Gain
120dB
Width
3.9mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LMP7721MA/NOPB Datasheet
Download the complete datasheet for Texas Instruments LMP7721MA/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

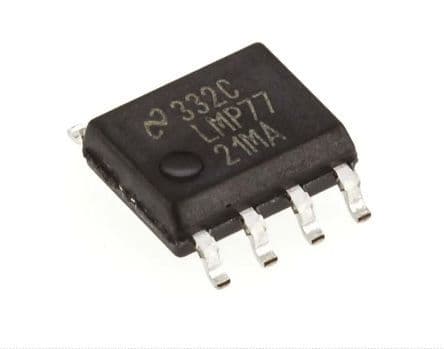

Product Images
