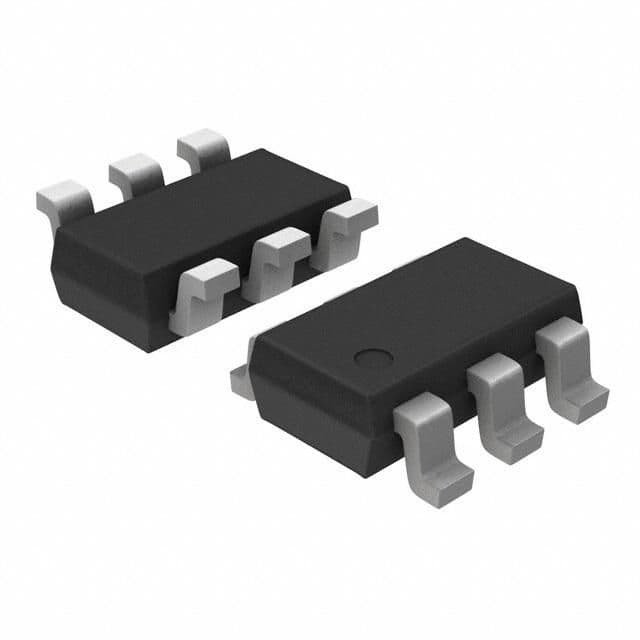

High-precision, single-channel operational amplifier designed for current sensing applications. Features a wide operating voltage range of 2.7V to 12V and a broad common-mode voltage capability from -2V to 42V. Offers a gain bandwidth product of 450kHz and a slew rate of 1.8V/µs, with a voltage gain of 40dB. Housed in a compact SOT-23-6 surface-mount package, this RoHS-compliant component operates from -40°C to 125°C.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments LMP8640MK-H/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments LMP8640MK-H/NOPB technical specifications.
| Package/Case | SOT-23-6 |
| Common Mode Rejection Ratio | 60dB |
| Gain Bandwidth Product | 450kHz |
| Height | 0.87mm |
| Input Bias Current | 20uA |
| Input Offset Voltage (Vos) | 900uV |
| Lead Free | Lead Free |
| Length | 2.97mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 12V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Operating Supply Current | 722uA |
| Output Voltage | 2.65V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 85dB |
| RoHS Compliant | Yes |
| Series | LMP8640 |
| Slew Rate | 1.8V/µs |
| Voltage Gain | 40dB |
| Weight | 0.00127oz |
| Width | 1.65mm |
| RoHS | Compliant |
