Configurable gain current sense amplifier with a 990kHz bandwidth and 860kHz -3dB bandwidth. Features a 260kHz gain bandwidth product, 95dB CMRR, and 90dB PSRR. Operates from a 2.7V to 12V supply voltage with a typical supply current of 2.2mA. Housed in a 6-SOT-23-THIN surface mount package, this single-channel operational amplifier offers a 1.7mV input offset voltage and 22uA input bias current. Suitable for applications operating between -40°C and 125°C.
PackageTSOT
Current610uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LMP8645HVMKE/NOPB technical specifications.
General
| -3db Bandwidth | 860kHz |
| Bandwidth | 990kHz |
| Package/Case | TSOT |
| Common Mode Rejection Ratio | 95dB |
| Gain Bandwidth Product | 260kHz |
| Height | 1mm |
| Input Bias Current | 22uA |
| Input Offset Voltage (Vos) | 1.7mV |
| Lead Free | Lead Free |
| Length | 3.05mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 2.7mA |
| Max Supply Voltage | 12V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 2 |
| Operating Supply Current | 2.2mA |
| Operating Supply Voltage | 9V |
| Output Current per Channel | 5mA |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 90dB |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | LMP8645HV |
| Slew Rate | 0.6V/µs |
| Supply Current | 610uA |
| Width | 1.75mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LMP8645HVMKE/NOPB Datasheet
Download the complete datasheet for Texas Instruments LMP8645HVMKE/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

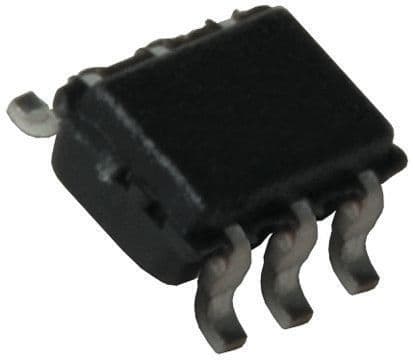

Product Images
