Texas Instruments
LMR14006YDDCR
SIMPLE SWITCHER® 4-V to 40-V, 600-mA step-down converter with Low Iq 6-SOT-23-THIN -40 to 125
PackageSOT-23-6
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LMR14006YDDCR technical specifications.
General
| Package/Case | SOT-23-6 |
| Lead Free | Lead Free |
| Max Input Voltage | 40V |
| Min Input Voltage | 4V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 600mA |
| Max Output Voltage | 38.4V |
| Min Output Voltage | 765mV |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Operating Supply Voltage | 40V |
| Output Configuration | Positive |
| Output Current | 600mA |
| Output Type | Adjustable, Fixed |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Quiescent Current | 28uA |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Series | SIMPLE SWITCHER® |
| Synchronous Rectifier | No |
| Weight | 0.00127oz |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LMR14006YDDCR Datasheet
Download the complete datasheet for Texas Instruments LMR14006YDDCR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

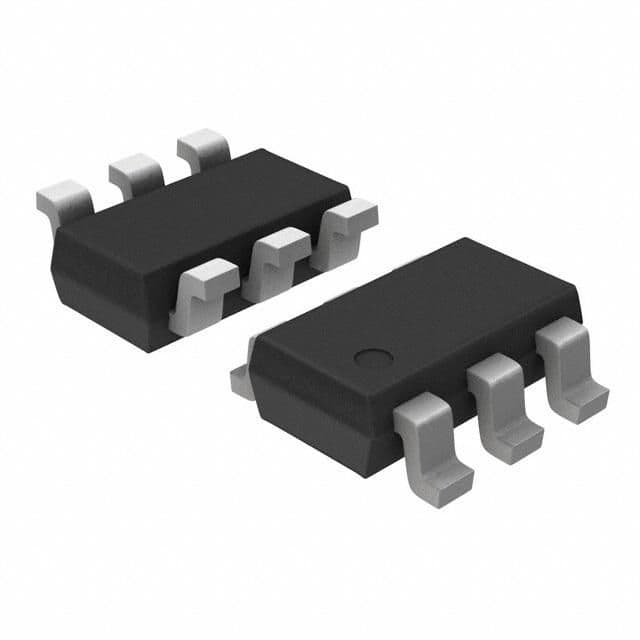

Product Images
