1A adjustable linear voltage regulator, featuring 1.2V dropout voltage and 1% accuracy. Operates from 2.5V to 15V input, providing an adjustable output voltage from 1.25V up to 13.8V. This surface mount component is housed in a TO-252 package, suitable for operation between 0°C and 125°C. RoHS compliant with a quiescent current of 5mA.
PackageTO-252
Current Rating1A
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LMS8117ADT-ADJ/NOPB technical specifications.
General
| Accuracy | 1% |
| Package/Case | TO-252 |
| Current Rating | 1A |
| Dropout Voltage | 1.2V |
| Height | 2.3mm |
| Lead Free | Lead Free |
| Length | 6.58mm |
| Max Input Voltage | 15V |
| Min Input Voltage | 2.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 1A |
| Max Output Voltage | 13.8V |
| Min Output Voltage | 1.25V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 1A |
| Output Type | Adjustable |
| Output Voltage | 13.8V |
| Package Quantity | 75 |
| Packaging | Rail/Tube |
| Quiescent Current | 5mA |
| Reach SVHC Compliant | No |
| Reference Voltage | 1.262V |
| RoHS Compliant | Yes |
| Width | 6.1mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LMS8117ADT-ADJ/NOPB Datasheet
Download the complete datasheet for Texas Instruments LMS8117ADT-ADJ/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

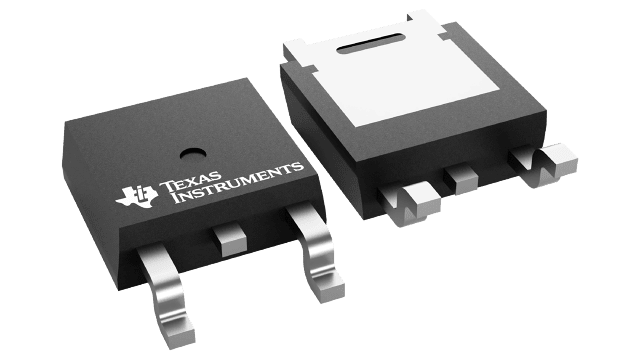

Product Images
