1A adjustable positive linear voltage regulator, featuring a 1.2V dropout voltage and 1% accuracy. Operates from a 2.5V to 15V input, providing an adjustable output voltage from 1.25V to 13.8V. This surface mount SOT-223 package component offers a 75dB PSRR and operates within a 0°C to 125°C temperature range. Designed for lead-free and RoHS compliant applications.
PackageSOT-223
MountingSurface Mount
PolarityPositive
Quick Jump:
Technical Specifications
Texas Instruments LMS8117AMP-ADJ/NOPB technical specifications.
General
| Accuracy | 1% |
| Package/Case | SOT-223 |
| Dropout Voltage | 1.2V |
| Height | 1.6mm |
| Lead Free | Lead Free |
| Length | 6.5mm |
| Min Current Limit | 1A |
| Max Input Voltage | 15V |
| Min Input Voltage | 2.5V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | 0°C |
| Max Output Current | 1A |
| Max Output Voltage | 13.8V |
| Min Output Voltage | 1.25V |
| Max Supply Current | 10mA |
| Max Supply Voltage | 15V |
| Min Supply Voltage | 2.5V |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Number of Regulators | 1 |
| Output Configuration | Positive |
| Output Current | 1A |
| Output Type | Adjustable |
| Output Voltage | 13.8V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Polarity | Positive |
| Power Supply Rejection Ratio (PSRR) | 75dB |
| Quiescent Current | 5mA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reference Voltage | 1.262V |
| RoHS Compliant | Yes |
| Termination | SMD/SMT |
| Width | 3.56mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LMS8117AMP-ADJ/NOPB Datasheet
Download the complete datasheet for Texas Instruments LMS8117AMP-ADJ/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

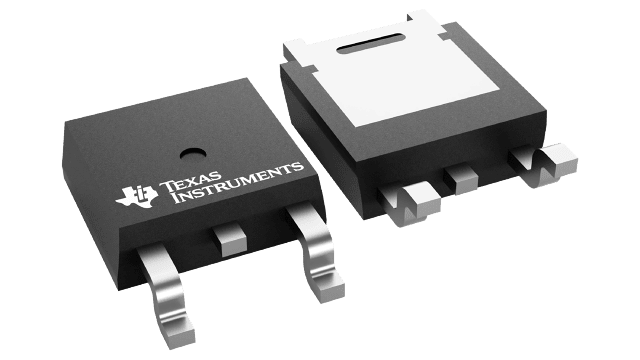

Product Images
