Texas Instruments
LMT86LPM
2.2V-Capable, 10 uA Analog Output Temperature Sensor in SC70 and TO-92 3-TO-92 -50 to 150
2.2V-Capable, 10 uA Analog Output Temperature Sensor in SC70 and TO-92 3-TO-92 -50 to 150
PackageTO-226-3
MountingThrough Hole
Quick Jump:
Chat with Datasheet
Sponsored by
Sign in to ask questions about the Texas Instruments LMT86LPM datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Technical Specifications
Texas Instruments LMT86LPM technical specifications.
General
| Package/Case | TO-226-3 |
| Interface | Analog |
| Lead Free | Lead Free |
| Max Operating Temperature | 150°C |
| Min Operating Temperature | -50°C |
| Mount | Through Hole |
| Operating Supply Voltage | 5.5V |
| Output Type | Analog Voltage, Analog |
| Packaging | Cut Tape |
| RoHS Compliant | Yes |
| Series | Automotive, AEC-Q100 |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LMT86LPM Datasheet
Download the complete datasheet for Texas Instruments LMT86LPM to view detailed technical specifications.
The embedded preview will load automatically when this section scrolls into view.

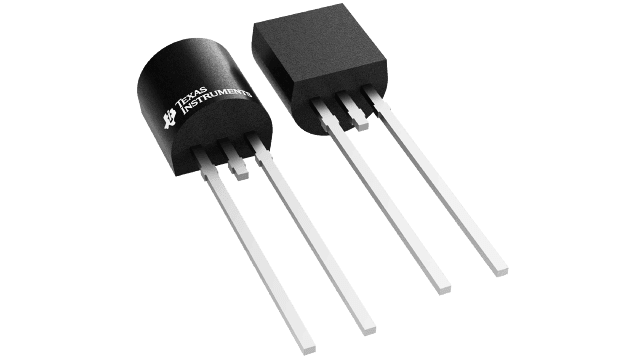

Product Images
