Single, general-purpose operational amplifier featuring rail-to-rail output. This BICMOS amplifier offers a 1MHz gain bandwidth product and a 1V/µs slew rate, suitable for low-voltage applications from 2.7V to 5.5V. With a 100dB voltage gain and 160mA output current, it operates across a -40°C to 125°C temperature range. The SOT-23-5 surface-mount package ensures compact integration.
PackageSOT-23-5
Current250uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LMV321IDBVR technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 1MHz |
| Package/Case | SOT-23-5 |
| Common Mode Rejection Ratio | 50dB |
| Gain Bandwidth Product | 1MHz |
| Height | 1.45mm |
| Input Bias Current | 250nA |
| Input Offset Voltage (Vos) | 7mV |
| Lead Free | Lead Free |
| Length | 2.9mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Amplifiers | 1 |
| Number of Channels | 1 |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Operating Supply Current | 130uA |
| Output Current | 160mA |
| Output Current per Channel | 160mA |
| Package Quantity | 1 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 1V/µs |
| Supply Current | 250uA |
| Technology | BICMOS |
| Thickness | 1.2mm |
| Unity Gain Bandwidth Product | 1MHz |
| Voltage Gain | 100dB |
| Width | 1.6mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LMV321IDBVR Datasheet
Download the complete datasheet for Texas Instruments LMV321IDBVR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

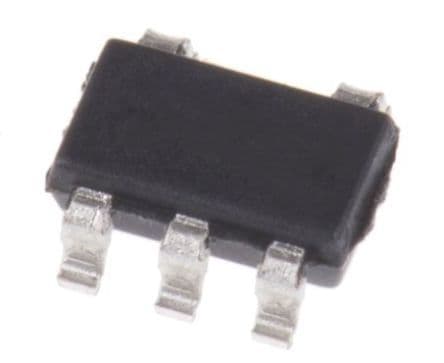

Product Images
