Single channel, general purpose operational amplifier featuring a 1MHz gain bandwidth product and 1V/µs slew rate. Designed for low voltage applications with rail-to-rail output, this BICMOS amplifier operates from a 2.7V to 5.5V supply. Key specifications include a 250nA input bias current, 7mV input offset voltage, and 60mA output current. Packaged in a 5-SOT-23 surface mount configuration, it offers a 50dB common mode rejection ratio and 50dB power supply rejection ratio.
PackageSOT-23
Current130uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LMV321M5/NOPB technical specifications.
General
Amplifier Type
GENERAL PURPOSE
Bandwidth
1MHz
Package/Case
SOT-23
Common Mode Rejection Ratio
50dB
Gain Bandwidth Product
1MHz
Input Bias Current
250nA
Input Offset Voltage (Vos)
7mV
Lead Free
Lead Free
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
350uA
Max Supply Voltage
5.5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Amplifiers
1
Number of Channels
1
Number of Circuits
1
Number of Elements
1
Output Current
60mA
Package Quantity
1000
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
50dB
Radiation Hardening
No
Reach SVHC Compliant
No
Slew Rate
1V/µs
Supply Current
130uA
Technology
BICMOS
Unity Gain Bandwidth Product
1MHz
Voltage Gain
100dB
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LMV321M5/NOPB Datasheet
Download the complete datasheet for Texas Instruments LMV321M5/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

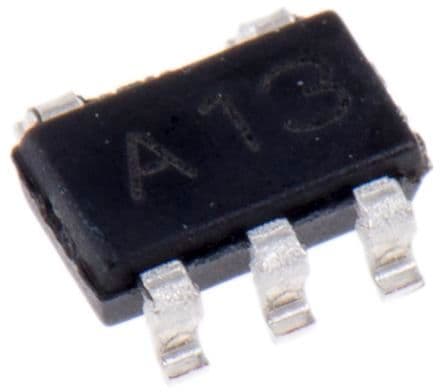

Product Images
