Quad channel, general purpose operational amplifier with rail-to-rail output. Features a 1MHz gain bandwidth product and 1V/µs slew rate. Operates from a 2.7V to 5.5V supply voltage with a maximum supply current of 830µA. Offers 50dB common mode rejection ratio and 50dB power supply rejection ratio. Packaged in a 14-SOIC surface mount case, suitable for operation between -40°C and 125°C.
PackageSOIC
Current410uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LMV324M/NOPB technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 1MHz |
| Package/Case | SOIC |
| Common Mode Rejection Ratio | 50dB |
| Gain Bandwidth Product | 1MHz |
| Height | 1.45mm |
| Input Bias Current | 250nA |
| Input Offset Voltage (Vos) | 7mV |
| Lead Free | Lead Free |
| Length | 8.64mm |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 830uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Amplifiers | 4 |
| Number of Channels | 4 |
| Number of Circuits | 4 |
| Number of Elements | 4 |
| Operating Supply Current | 410uA |
| Output Current | 60mA |
| Output Current per Channel | 160mA |
| Package Quantity | 55 |
| Packaging | Rail/Tube |
| Power Supply Rejection Ratio (PSRR) | 50dB |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Slew Rate | 1V/µs |
| Supply Current | 410uA |
| Technology | BICMOS |
| Thickness | 1.58mm |
| Unity Gain Bandwidth Product | 1MHz |
| Voltage Gain | 100dB |
| Width | 3.91mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LMV324M/NOPB Datasheet
Download the complete datasheet for Texas Instruments LMV324M/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

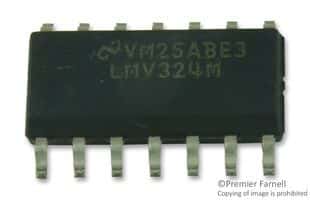

Product Images
