Dual low-voltage, rail-to-rail output operational amplifier featuring a 1MHz gain bandwidth product and 1V/µs slew rate. This general-purpose amplifier offers 100dB voltage gain, 50dB CMRR, and a 1.7mV input offset voltage. Designed for surface mounting in a VSSOP package, it operates from a 2.7V to 5.5V supply voltage with a maximum supply current of 340µA. Ideal for applications requiring 2 channels with 160mA output current per channel, this RoHS compliant component operates across a temperature range of -40°C to 125°C.
PackageVSSOP
Current440uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LMV358QDDUR technical specifications.
General
| Amplifier Type | GENERAL PURPOSE |
| Bandwidth | 1MHz |
| Package/Case | VSSOP |
| Common Mode Rejection Ratio | 50dB |
| Gain Bandwidth Product | 1MHz |
| Input Bias Current | 15nA |
| Input Offset Voltage (Vos) | 1.7mV |
| Lead Free | Lead Free |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 340uA |
| Max Supply Voltage | 5.5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Circuits | 2 |
| Operating Supply Current | 210uA |
| Output Current | 160mA |
| Output Current per Channel | 160mA |
| Package Quantity | 3000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Slew Rate | 1V/µs |
| Supply Current | 440uA |
| Technology | BICMOS |
| Voltage Gain | 100dB |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LMV358QDDUR Datasheet
Download the complete datasheet for Texas Instruments LMV358QDDUR to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

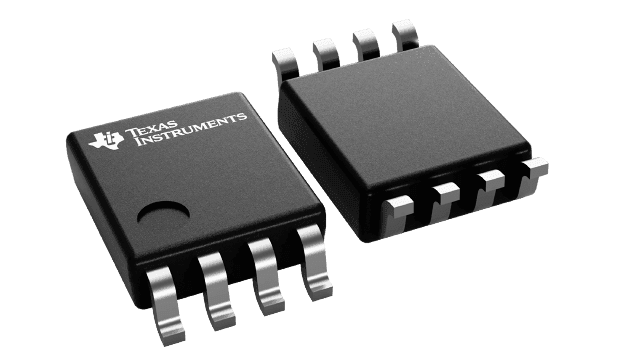

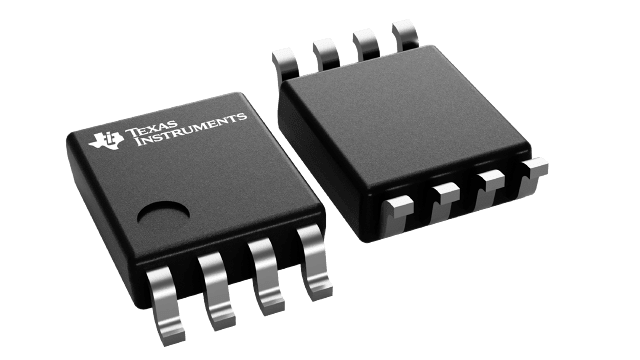

Product Images
