Dual general-purpose comparator, operating from 2.7V to 5V with a typical 3V supply. Features 2 elements, CMOS output compatibility, and TTL output type. Offers a 200ns response time, 600ns propagation delay, and 84mA output current. Input bias and offset voltage are 250nA and 7mV respectively. Packaged in an 8-VSSOP (MSOP) for surface mounting, with an operating temperature range of -40°C to 85°C.
PackageMSOP
Current200uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LMV393MM/NOPB technical specifications.
General
| Package/Case | MSOP |
| Input Bias Current | 250nA |
| Input Offset Voltage (Vos) | 7mV |
| Max Input Current | 250nA |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Elements | 2 |
| Operating Supply Voltage | 3V |
| Output Compatibility | CMOS |
| Output Current | 84mA |
| Output Type | TTL |
| Packaging | Tape and Reel |
| Propagation Delay | 600ns |
| Quiescent Current | 300uA |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Response Time | 200ns |
| RoHS Compliant | Yes |
| Supply Current | 200uA |
| Technology | BIPOLAR |
| Thickness | 970um |
| Type | General Purpose |
| Voltage Gain | 93.98dB |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LMV393MM/NOPB Datasheet
Download the complete datasheet for Texas Instruments LMV393MM/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

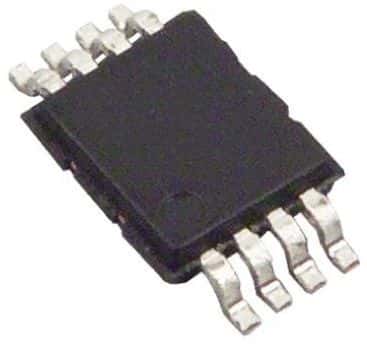

Product Images
