Adjustable precision shunt regulator, 1.24V minimum output voltage, with a 1% tolerance. Features a maximum output current of 15mA and a maximum input voltage of 35V. This surface mount component operates within a temperature range of -40°C to 85°C and is supplied in a 5-SOT-23 package. Cathode current is 80µA.
PackageSOT-23
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LMV431ACM5 technical specifications.
General
| Package/Case | SOT-23 |
| Cathode Current | 80uA |
| Lead Free | Contains Lead |
| Max Input Voltage | 35V |
| Min Input Voltage | 1.24V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 15mA |
| Max Output Voltage | 30V |
| Min Output Voltage | 1.24V |
| Mount | Surface Mount |
| Number of Channels | 1 |
| Output Current | 15mA |
| Output Type | Adjustable |
| Output Voltage | 30V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| Reference Type | Shunt, Adjustable |
| Reference Voltage | 30V |
| RoHS Compliant | No |
| Series | LMV431A |
| Tolerance | 1% |
Compliance
| RoHS | Not CompliantNo |
Datasheet
Texas Instruments LMV431ACM5 Datasheet
Download the complete datasheet for Texas Instruments LMV431ACM5 to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

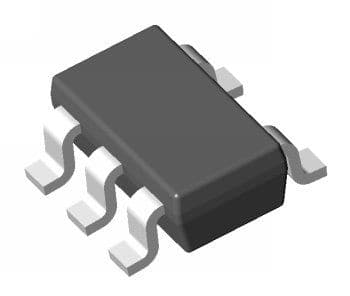

Product Images
