High-speed, single-element BICMOS comparator featuring a 7ns response time and 20ns propagation delay. Operates from a 2.7V to 5V supply voltage with a typical 3V operating voltage. Offers rail-to-rail output with a push-pull configuration and a 68mA output current. Designed for surface mount applications in a 5-SC70 package, with a wide operating temperature range of -40°C to 85°C. Key specifications include 85dB CMRR and PSRR, 6mV input offset voltage, and 950nA input bias current.
PackageSC
Current1.8mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LMV7219M7/NOPB technical specifications.
General
Package/Case
SC
Common Mode Rejection Ratio
85dB
Height
0.9mm
Hysteresis
7.5mV
Input Bias Current
950nA
Input Offset Voltage (Vos)
6mV
Lead Free
Lead Free
Length
2mm
Max Input Current
950nA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
1.8mA
Max Supply Voltage
5V
Min Supply Voltage
2.7V
Mount
Surface Mount
Number of Elements
1
Operating Supply Voltage
3V
Output Current
68mA
Output Type
PUSH-PULL
Package Quantity
1
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
85dB
Propagation Delay
20ns
Quiescent Current
1.8mA
Radiation Hardening
No
Reach SVHC Compliant
No
Response Time
7ns
RoHS Compliant
Yes
Supply Current
1.8mA
Technology
BICMOS
Termination
SMD/SMT
Type
General Purpose
Width
1.25mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LMV7219M7/NOPB Datasheet
Download the complete datasheet for Texas Instruments LMV7219M7/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

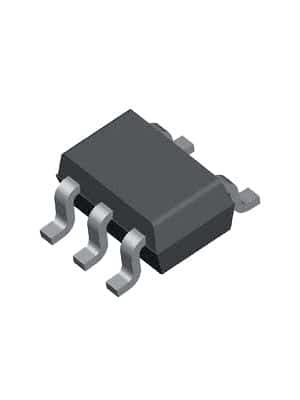

Product Images
