Dual 1.8V low-power comparators featuring rail-to-rail input and push-pull output. Operating from a minimum 1.8V to a maximum 5.5V supply, these BICMOS ICs offer a typical supply current of 27µA. Key specifications include a 78dB Common Mode Rejection Ratio and 80dB Power Supply Rejection Ratio, with a response time of 1.8µs. Housed in an 8-DSBGA package, these surface-mount components are designed for operation between -40°C and 85°C.
PackageBGA
Current27uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LMV7272TL/NOPB technical specifications.
General
Package/Case
BGA
Common Mode Rejection Ratio
78dB
Dual Supply Voltage
5.5V
Height
0.36mm
Input Bias Current
10nA
Input Offset Voltage (Vos)
4mV
Lead Free
Lead Free
Length
1.51mm
Max Input Current
10nA
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
27uA
Max Supply Voltage
5.5V
Min Supply Voltage
1.8V
Mount
Surface Mount
Number of Channels
2
Number of Elements
2
Operating Supply Current
27uA
Operating Supply Voltage
5V
Output Type
PUSH-PULL
Package Quantity
1
Packaging
Tape and Reel
Power Supply Rejection Ratio (PSRR)
80dB
Propagation Delay
2.1us
Quiescent Current
14uA
Radiation Hardening
No
Response Time
1.8us
RoHS Compliant
Yes
Series
PowerWise®
Supply Current
27uA
Supply Type
Single
Technology
BICMOS
Type
General Purpose
Width
1.51mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LMV7272TL/NOPB Datasheet
Download the complete datasheet for Texas Instruments LMV7272TL/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

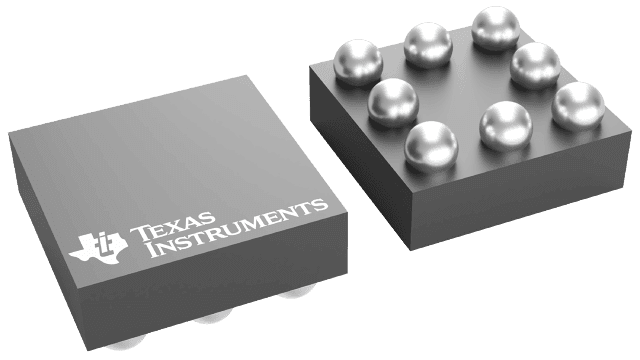

Product Images
