Dual high-speed, low-voltage precision comparator in a VSSOP package. Features 2 channels, 2 elements, and a PUSH-PULL output type. Operates from a 2.7V to 5V supply voltage with a maximum supply current of 1.4mA. Offers a 225ns propagation delay and 0.12us response time. Boasts a 100dB Common Mode Rejection Ratio and 110dB Power Supply Rejection Ratio. Input bias and offset voltage are 50pA and 200uV respectively.
PackageVSSOP
Current450uA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LMV762MMX technical specifications.
General
| Package/Case | VSSOP |
| Common Mode Rejection Ratio | 100dB |
| Input Bias Current | 50pA |
| Input Offset Voltage (Vos) | 200uV |
| Lead Free | Contains Lead |
| Max Input Current | 50pA |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 1.4mA |
| Max Supply Voltage | 5V |
| Min Supply Voltage | 2.7V |
| Mount | Surface Mount |
| Number of Channels | 2 |
| Number of Elements | 2 |
| Output Current | 40mA |
| Output Type | PUSH-PULL |
| Package Quantity | 3500 |
| Packaging | Tape and Reel |
| Power Supply Rejection Ratio (PSRR) | 110dB |
| Propagation Delay | 225ns |
| Quiescent Current | 700uA |
| Response Time | 0.12us |
| RoHS Compliant | No |
| Supply Current | 450uA |
| Technology | CMOS |
| Type | General Purpose |
Compliance
| RoHS | Not Compliant |
Datasheet
Texas Instruments LMV762MMX Datasheet
Download the complete datasheet for Texas Instruments LMV762MMX to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

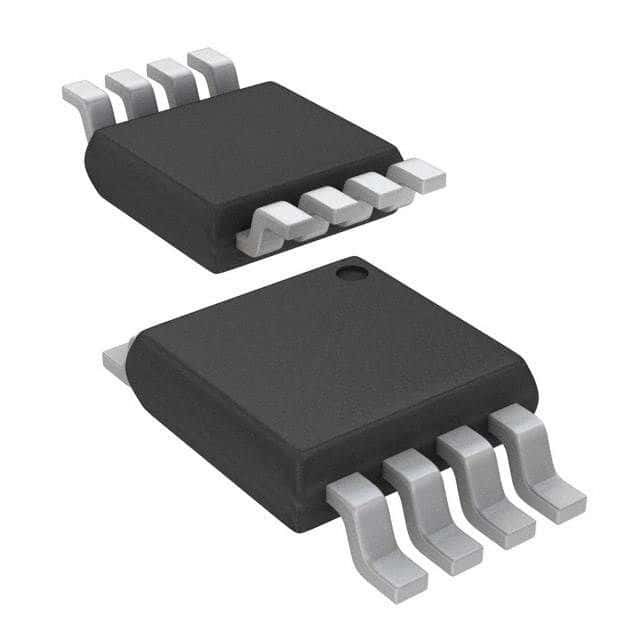

Product Images
