Texas Instruments
LMX2470SLEX/NOPB
2.6 GHz Delta-Sigma Fractional-N PLL with 800 MHz Integer-N PLL 24-ULGA -40 to 85
Frequency110MHz
Current6mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LMX2470SLEX/NOPB technical specifications.
General
| Frequency | 110MHz |
| Height | 0.6mm |
| Input | CMOS |
| Lead Free | Lead Free |
| Length | 4.5mm |
| Max Frequency | 2.6GHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Current | 6mA |
| Max Supply Voltage | 2.75V |
| Min Supply Voltage | 2.25V |
| Mount | Surface Mount |
| Number of Elements | 2 |
| Operating Supply Current | 3.9mA |
| Operating Supply Voltage | 2.5V |
| Packaging | Tape and Reel |
| PLL | Yes |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | LMX2470 |
| Supply Current | 6mA |
| Width | 3.5mm |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LMX2470SLEX/NOPB Datasheet
Download the complete datasheet for Texas Instruments LMX2470SLEX/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

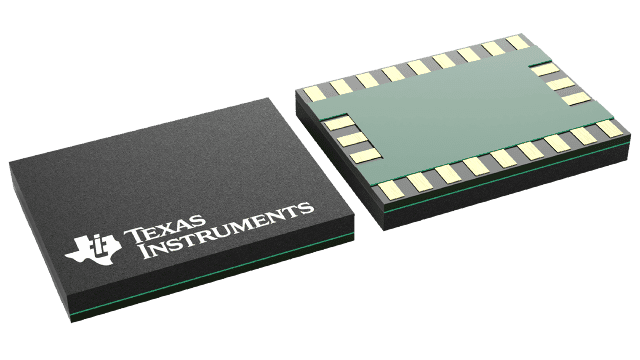

Product Images
