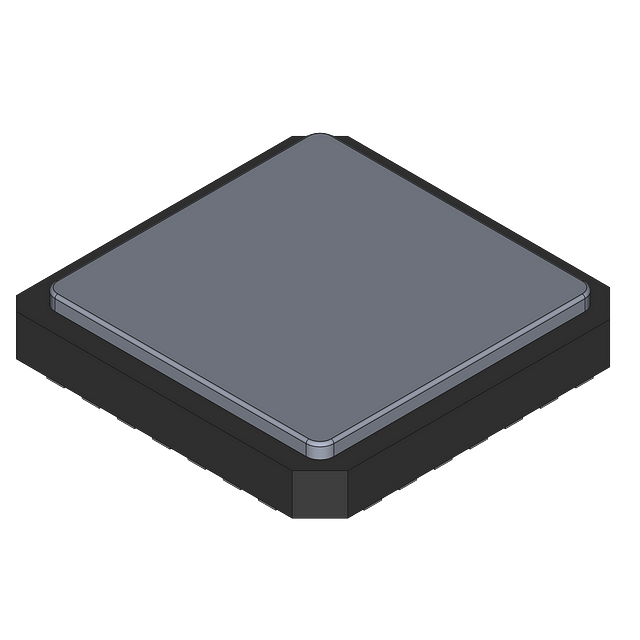

The LMX2502LQ1635 is a 1.635GHz phase-locked loop (PLL) from Texas Instruments. It operates within a temperature range of -30°C to 85°C and requires a supply voltage between 2.7V and 3.3V. The device is available in a LLP-28 package, which is suitable for surface mount applications. The LMX2502LQ1635 is not RoHS compliant and contains lead, making it a non-lead-free component. It has a supply current of 17mA and is available in quantities of 1000 per reel.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments LMX2502LQ1635 datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
Texas Instruments LMX2502LQ1635 technical specifications.
| Frequency | 1.635GHz |
| Lead Free | Contains Lead |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -30°C |
| Max Supply Voltage | 3.3V |
| Min Supply Voltage | 2.7V |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 2.8V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| Radiation Hardening | No |
| RoHS Compliant | No |
| Series | PLLatinum™ |
| Supply Current | 17mA |
| RoHS | Not CompliantNo |
