High-performance frequency synthesizer system with integrated VCO, operating from 2.8V to 3.2V with a typical 3V supply. This phase-locked loop (PLL) IC offers a maximum output frequency of 1.84GHz, with a specific configuration at 1.51GHz. Designed for surface mount applications, it features a 6mm x 6mm x 0.8mm 36-WQFN package and operates within a temperature range of -40°C to 85°C. The component is lead-free, RoHS compliant, and consumes a maximum supply current of 46mA.
Frequency1.51GHz
Current46mA
MountingSurface Mount
Power102mW
Quick Jump:
Technical Specifications
Texas Instruments LMX2531LQ1500E/NOPB technical specifications.
General
Frequency
1.51GHz
Height
0.8mm
Input
Clock
Lead Free
Lead Free
Length
6mm
Max Frequency
1.84GHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Current
46mA
Max Supply Voltage
3.2V
Min Supply Voltage
2.8V
Mount
Surface Mount
Number of Circuits
1
Number of Elements
1
Number of Outputs
1
Operating Supply Current
32mA
Operating Supply Voltage
3V
Packaging
Tape and Reel
PLL
Yes
Power Consumption
102mW
Radiation Hardening
No
RoHS Compliant
Yes
Series
PowerWise®
Supply Current
46mA
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LMX2531LQ1500E/NOPB Datasheet
Download the complete datasheet for Texas Instruments LMX2531LQ1500E/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

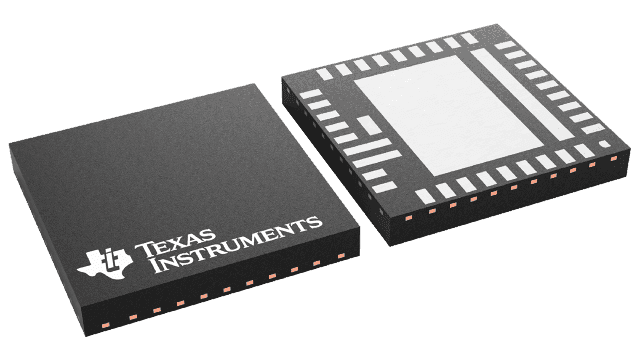

Product Images
