Texas Instruments
LMX2531LQ1570E/NOPB
High Performance Frequency Synthesizer System with Integrated VCO 36-WQFN -40 to 85
Frequency1.636GHz
Current46mA
MountingSurface Mount
Power102mW
Quick Jump:
Technical Specifications
Texas Instruments LMX2531LQ1570E/NOPB technical specifications.
General
Input
Clock
Lead Free
Lead Free
Max Frequency
1.636GHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.2V
Min Supply Voltage
2.8V
Mount
Surface Mount
Number of Circuits
1
Number of Elements
1
Number of Outputs
1
Operating Supply Voltage
3V
Packaging
Tape and Reel
PLL
Yes
Power Consumption
102mW
Radiation Hardening
No
RoHS Compliant
Yes
Supply Current
46mA
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LMX2531LQ1570E/NOPB Datasheet
Download the complete datasheet for Texas Instruments LMX2531LQ1570E/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

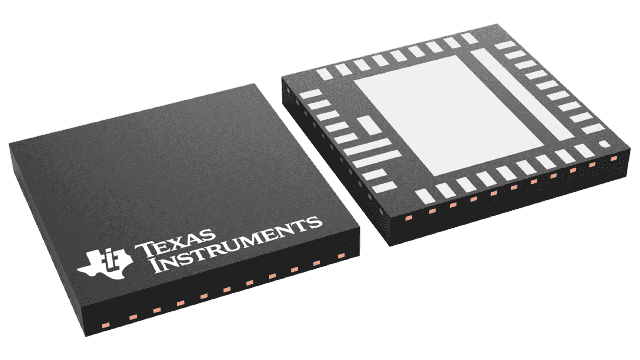

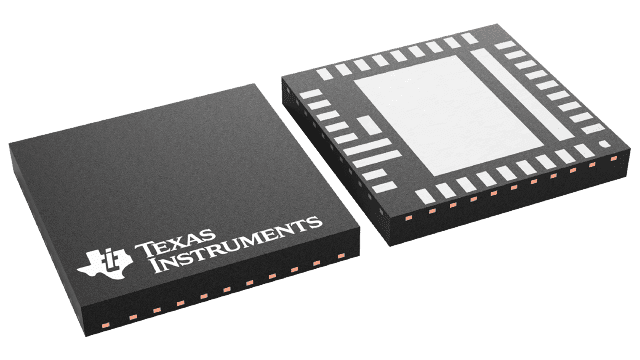

Product Images
