The LMX2531LQ1742/NOPB is a clock generator from Texas Instruments. It operates at a maximum frequency of 1.866GHz and has a maximum supply voltage of 3.2V. The device is RoHS compliant and suitable for surface mount applications. It can withstand operating temperatures between -40°C and 85°C. The LMX2531LQ1742/NOPB is available in a QFN-32 package, typically supplied on tape and reel in quantities of 250.
Frequency1.866GHz
Current46mA
MountingSurface Mount
Power102mW
Quick Jump:
Technical Specifications
Texas Instruments LMX2531LQ1742/NOPB technical specifications.
General
| Input | Clock |
| Lead Free | Lead Free |
| Max Frequency | 1.866GHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.2V |
| Min Supply Voltage | 2.8V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Operating Supply Current | 32mA |
| Operating Supply Voltage | 3V |
| Package Quantity | 250 |
| Packaging | Tape and Reel |
| PLL | Yes |
| Power Consumption | 102mW |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 46mA |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LMX2531LQ1742/NOPB Datasheet
Download the complete datasheet for Texas Instruments LMX2531LQ1742/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

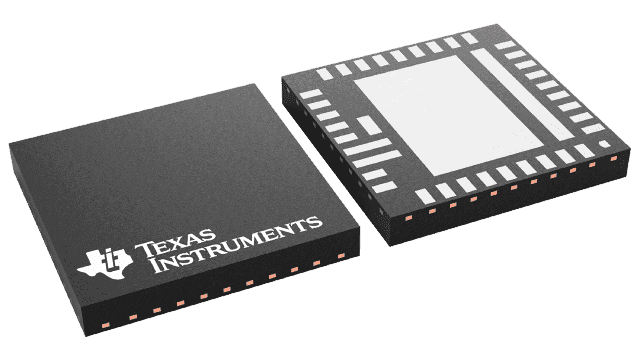

Product Images
