High-performance frequency synthesizer system with integrated VCO, operating as a Phase-Locked Loop (PLL) IC. Features a maximum output frequency of 2.79GHz and a single output. Designed for surface mount applications with a 36-WQFN package, measuring 6mm x 6mm x 0.8mm. Operates within a supply voltage range of 2.8V to 3.2V, with a typical operating voltage of 3V and a supply current of 46mA. Suitable for industrial environments with an operating temperature range of -40°C to 85°C.
Frequency2.79GHz
Current46mA
MountingSurface Mount
Power102mW
Quick Jump:
Technical Specifications
Texas Instruments LMX2531LQ1778E/NOPB technical specifications.
General
Height
0.8mm
Input
Clock
Lead Free
Lead Free
Length
6mm
Max Frequency
2.79GHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.2V
Min Supply Voltage
2.8V
Mount
Surface Mount
Number of Circuits
1
Number of Elements
1
Number of Outputs
1
Operating Supply Current
32mA
Operating Supply Voltage
3V
Package Quantity
250
Packaging
Tape and Reel
PLL
Yes
Power Consumption
102mW
Radiation Hardening
No
RoHS Compliant
Yes
Series
PowerWise®
Supply Current
46mA
Width
6mm
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LMX2531LQ1778E/NOPB Datasheet
Download the complete datasheet for Texas Instruments LMX2531LQ1778E/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

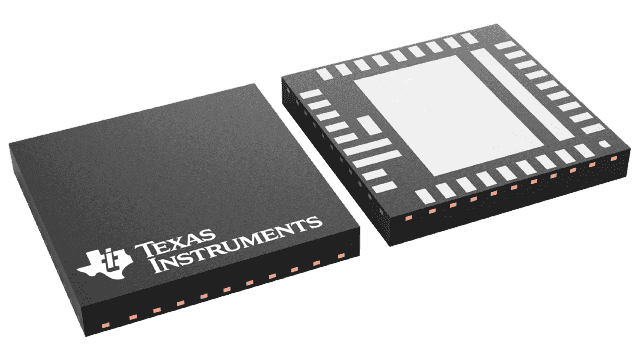

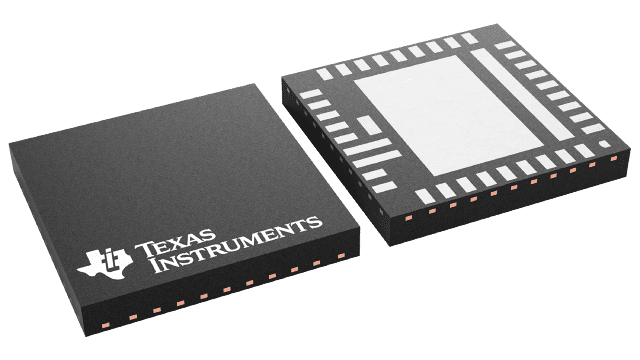

Product Images
