Texas Instruments
LMX2541SQ2060E/NOPB
Ultra-Low Noise PLLatinum Frequency Synthesizer with Integrated VCO 36-WQFN -40 to 85
Frequency2.1GHz
Current120mA
MountingSurface Mount
Power500mW
Quick Jump:
Technical Specifications
Texas Instruments LMX2541SQ2060E/NOPB technical specifications.
General
Input
Clock
Lead Free
Lead Free
Max Frequency
2.1GHz
Max Operating Temperature
85°C
Min Operating Temperature
-40°C
Max Supply Voltage
3.45V
Min Supply Voltage
3.15V
Mount
Surface Mount
Number of Circuits
1
Number of Elements
1
Operating Supply Voltage
3.3V
Package Quantity
1000
Packaging
Tape and Reel
PLL
Yes
Power Consumption
500mW
Radiation Hardening
No
RoHS Compliant
Yes
Series
LMX2541
Supply Current
120mA
Compliance
RoHS
Compliant
Datasheet
Texas Instruments LMX2541SQ2060E/NOPB Datasheet
Download the complete datasheet for Texas Instruments LMX2541SQ2060E/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

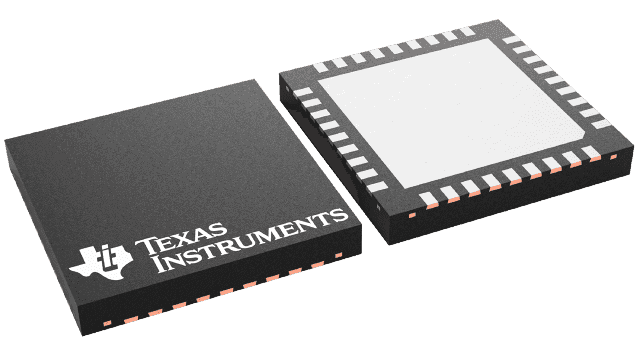

Product Images
