Texas Instruments
LMX2541SQ2690E/NOPB
PLLatinum Frequency Synthesizer, 2.865GHz, 3.3V, -40 to 85C, WQFN
Ultra-low noise PLLatinum frequency synthesizer with integrated VCO, operating from 3.15V to 3.45V with a typical 3.3V supply. This surface mount device supports clock inputs and achieves a maximum frequency of 2.865GHz. Designed for a wide operating temperature range of -40°C to 85°C, it is lead-free and RoHS compliant. Packaged in tape and reel, this single-circuit phase-locked loop IC offers a supply current of 120mA.
Frequency2.865GHz
Current120mA
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LMX2541SQ2690E/NOPB technical specifications.
General
| Input | Clock |
| Lead Free | Lead Free |
| Max Frequency | 2.865GHz |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Supply Voltage | 3.45V |
| Min Supply Voltage | 3.15V |
| Mount | Surface Mount |
| Number of Circuits | 1 |
| Number of Elements | 1 |
| Operating Supply Voltage | 3.3V |
| Package Quantity | 1000 |
| Packaging | Tape and Reel |
| PLL | Yes |
| Radiation Hardening | No |
| RoHS Compliant | Yes |
| Supply Current | 120mA |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LMX2541SQ2690E/NOPB Datasheet
Download the complete datasheet for Texas Instruments LMX2541SQ2690E/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

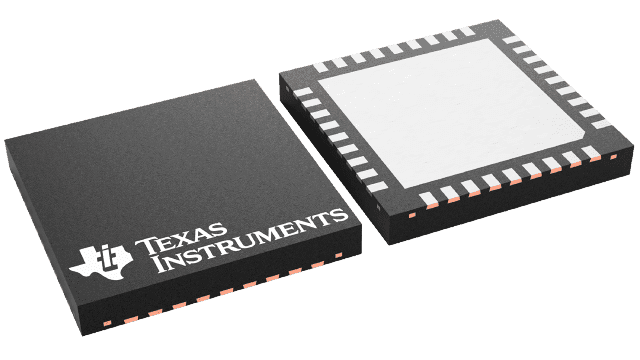

Product Images
