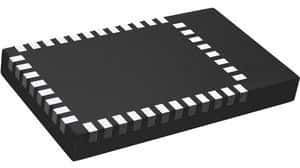

2.4GHz Wireless MCU and Smart RF Transceiver Module, featuring a 704Kbps data rate and 0dBm output power. This surface mount device operates within a 2.5V to 3.6V supply voltage range, with a typical operating voltage of 3.3V and a maximum supply current of 65mA. It offers a sensitivity of -80dBm and includes Serial and UART interfaces, along with 3 GPIO pins. The module is housed in an LGA package, suitable for operation between -40°C and 85°C, and is RoHS compliant.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments LMX9838SB/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Package/Case | LGA |
| Current - Receiving | 65mA |
| Current - Transmitting | 65mA |
| Data Rate | 704Kbps |
| Frequency | 2.4GHz |
| Interface | Serial, UART |
| Lead Free | Lead Free |
| Max Operating Temperature | 85°C |
| Memory Size | 16KB |
| Min Operating Temperature | -40°C |
| Max Supply Current | 65mA |
| Max Supply Voltage | 3.6V |
| Min Supply Voltage | 2.5V |
| Moisture Sensitivity Level | 4 |
| Mount | Surface Mount |
| Number of GPIO | 3 |
| Operating Supply Voltage | 3.3V |
| Output Power (dBm) | 0dBm |
| Package Quantity | 135 |
| Packaging | Tray |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Sensitivity | -80dBm |
| Series | LMX9838 |
| RoHS | Compliant |
