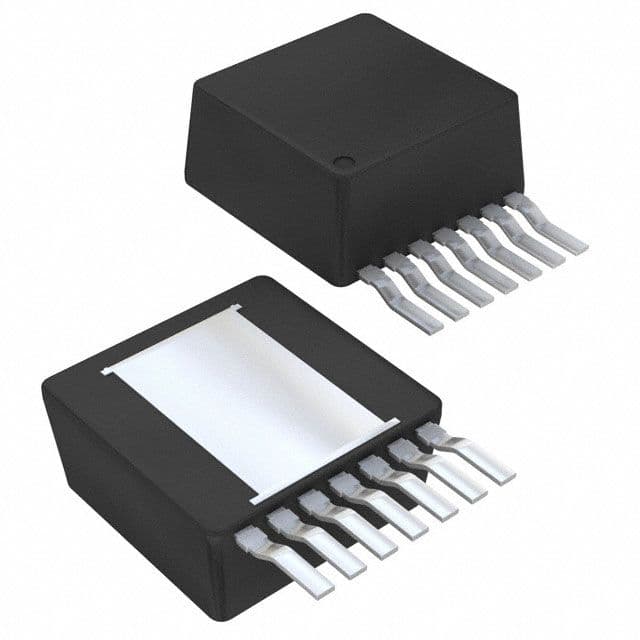

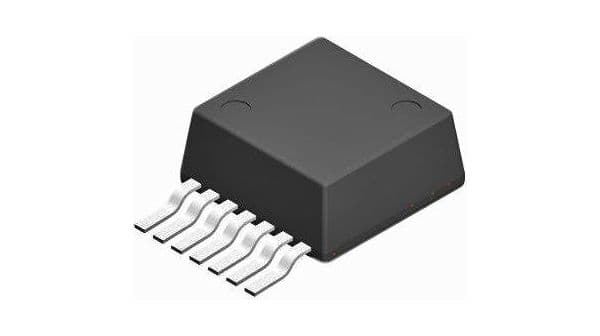

3A DC/DC Controller & Regulator, a surface mount power module, offers a 6V adjustable output voltage with a maximum output current of 3A. Featuring a wide input voltage range from 6V to 42V, this component boasts 90% efficiency and a maximum power dissipation of 18W. Operating across an extended temperature range of -55°C to 125°C, it includes Under-Voltage Lockout (UVLO) protection. The compact design measures 4.57mm in height, 10.16mm in length, and 0.54 inches in width, with a single output.
Checking distributor stock and pricing after the page loads.
Sign in to ask questions about the Texas Instruments LMZ14203EXTTZE/NOPB datasheet using AI. Get instant answers about specifications, features, and technical details, ideal for finding information in larger documents.
Sign In to ChatWidest selection of semiconductors and electronic components in stock and ready to ship ™
| Efficiency | 90% |
| Features | UVLO |
| Height | 4.57mm |
| Lead Free | Lead Free |
| Length | 10.16mm |
| Max Input Voltage | 42V |
| Min Input Voltage | 6V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Output Current | 3A |
| Max Output Voltage | 6V |
| Min Output Voltage | 800mV |
| Max Power Dissipation | 18W |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 3A |
| Output Type | Adjustable |
| Output Voltage | 6V |
| Package Quantity | 45 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SIMPLE SWITCHER® |
| Voltage - Output 1 | 6V |
| Width | 0.54inch |
| RoHS | Compliant |
