Texas Instruments
LMZ14203EXTTZX/NOPB
3A SIMPLE SWITCHER Power Module with 42V Maximum Input Voltage for Military and Rugged App 7-TO-PMOD -55 to 125
MountingSurface Mount
Quick Jump:
Technical Specifications
Texas Instruments LMZ14203EXTTZX/NOPB technical specifications.
General
| Efficiency | 90% |
| Features | UVLO, OVP, OTP, SCP |
| Lead Free | Lead Free |
| Max Input Voltage | 42V |
| Min Input Voltage | 6V |
| Max Operating Temperature | 125°C |
| Min Operating Temperature | -55°C |
| Max Output Current | 3A |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 3A |
| Output Voltage | 6V |
| Package Quantity | 500 |
| Packaging | Tape and Reel |
| RoHS Compliant | Yes |
| Series | SIMPLE SWITCHER® |
| Voltage - Output 1 | 6V |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LMZ14203EXTTZX/NOPB Datasheet
Download the complete datasheet for Texas Instruments LMZ14203EXTTZX/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

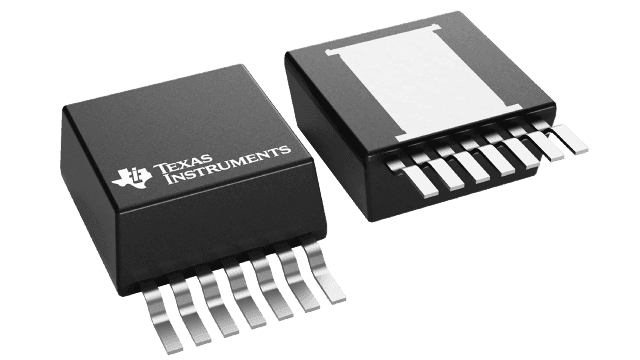

Product Images
