3A DC/DC Power Module with adjustable output voltage from 800mV to 6V, capable of delivering up to 3A output current and 18W output power. Features a maximum input voltage of 20V and a minimum input voltage of 6V, with high efficiency up to 92%. Operates across a wide temperature range of -40°C to 85°C and includes Under-Voltage Lockout (UVLO) protection. This surface-mount component is RoHS compliant and packaged in a 7-TO-PMOD package.
MountingSurface Mount
Power18W
Quick Jump:
Technical Specifications
Texas Instruments LMZ22003TZ/NOPB technical specifications.
General
| Depth | 4.57mm |
| Efficiency | 92% |
| Features | UVLO |
| Height | 0.18inch |
| Lead Free | Lead Free |
| Length | 10.16mm |
| Max Input Voltage | 20V |
| Min Input Voltage | 6V |
| Max Operating Temperature | 85°C |
| Min Operating Temperature | -40°C |
| Max Output Current | 3A |
| Max Output Voltage | 6V |
| Min Output Voltage | 800mV |
| Max Power Dissipation | 18W |
| Mount | Surface Mount |
| Number of Outputs | 1 |
| Output Current | 3A |
| Output Power | 18W |
| Output Type | Adjustable |
| Output Voltage | 6V |
| Package Quantity | 45 |
| Packaging | Rail/Tube |
| Radiation Hardening | No |
| Reach SVHC Compliant | No |
| RoHS Compliant | Yes |
| Series | SIMPLE SWITCHER® |
| Voltage - Output 1 | 6V |
| Width | 0.54inch |
Compliance
| RoHS | Compliant |
Datasheet
Texas Instruments LMZ22003TZ/NOPB Datasheet
Download the complete datasheet for Texas Instruments LMZ22003TZ/NOPB to view detailed technical specifications.
This datasheet cannot be embedded due to technical restrictions.

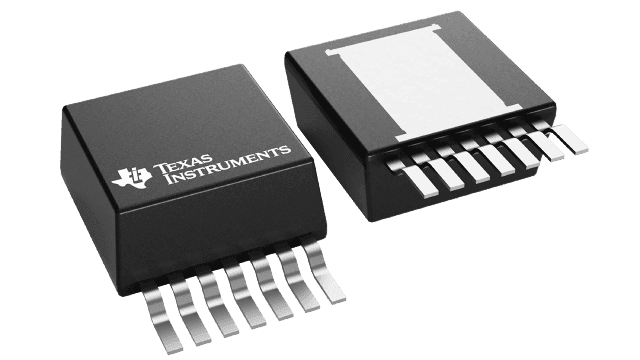

Product Images
